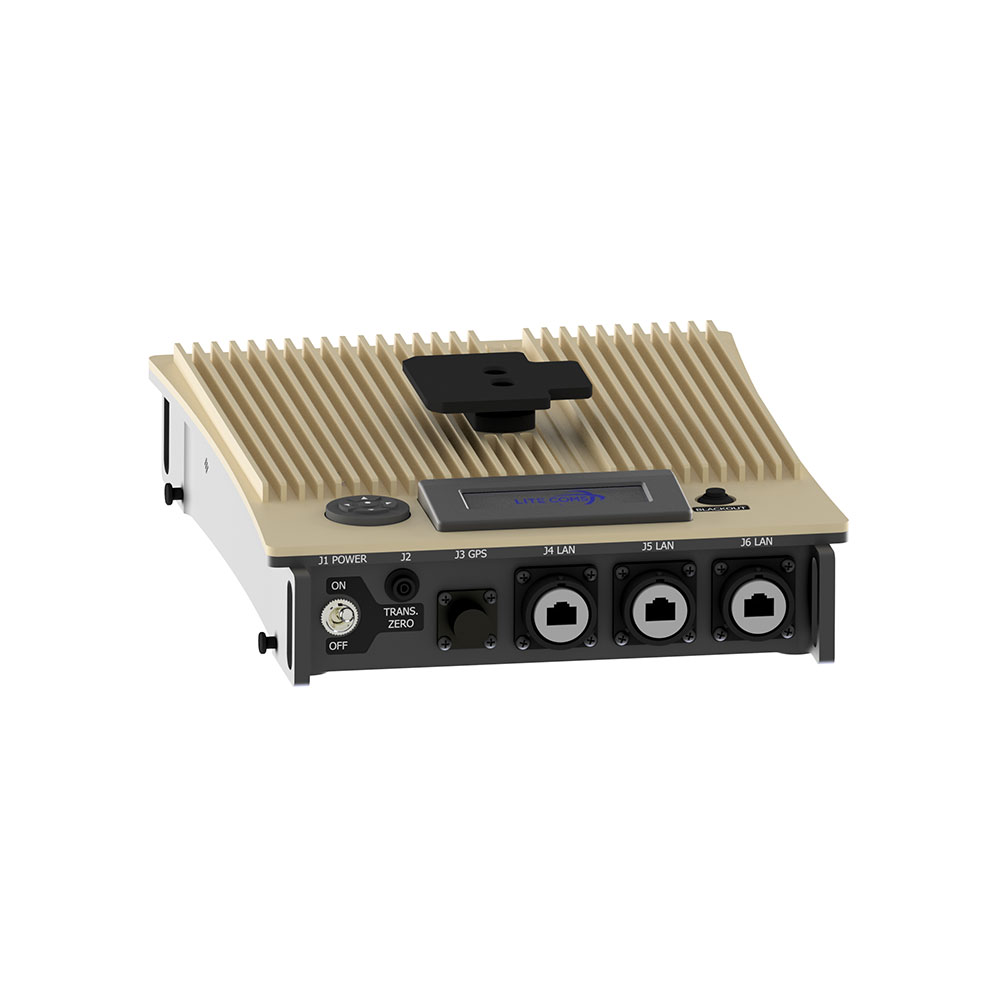

Our compact line of Tactical Modem Assemblies (TMA) bring the lowest SWAP offering of your most commonly used Satellite modems to the market. Our Tactical package has been optimized using FEA to get the heat out without adding unnecessary weight and cost. This process has yielded the most price competitive TMA available with the best performance and the most choices in Power Supplies in the world.

By keeping the Power Supply in a separate box, we have kept the heat away from the modem, avoided the need for costly cooling, and allowed customers to buy the Power Supply they need, not the Power Supply that the manufacturer chose to offer! We have choices from the simple to the robust, and all variables in between.

The Lite Coms® TMA is also available hosting Lite Link®, our robust, user friendly Graphical User Interface, for controlling all Lite Coms Auto Acquire Terminals.

Mechanical Specifications

Dimensions 12.5"X9.25"x3.25"
Weight 8.5 lbs 3.85 (kgs)

Environmental Specifications

Temp (Operations) -40 to +60C
Temp (Storage) -40 to +70C
Vibration MIL-STD 810G
Humidity 0 to 100% condensing
Rain MIL-STD 810G
Salt Fog MIL-STD 810G
Sand and Dust MIL-STD 810G
Altitude (Operational) 10,000ft
Altitude (Storage) 30,000ft

Connectors

Power PT02A-8-2S
Ethernet (3) RJF62A1B
M & C ECRH0201U00
Console RJF62A1B
GPS PT02A-10-6S
Transmit TNC
Receive Type 'N'
Keyline PT02A-8-2S

*Specifications are subject to change as Lite Coms® Engineers are continuously striving to improve performance of all of our products.
