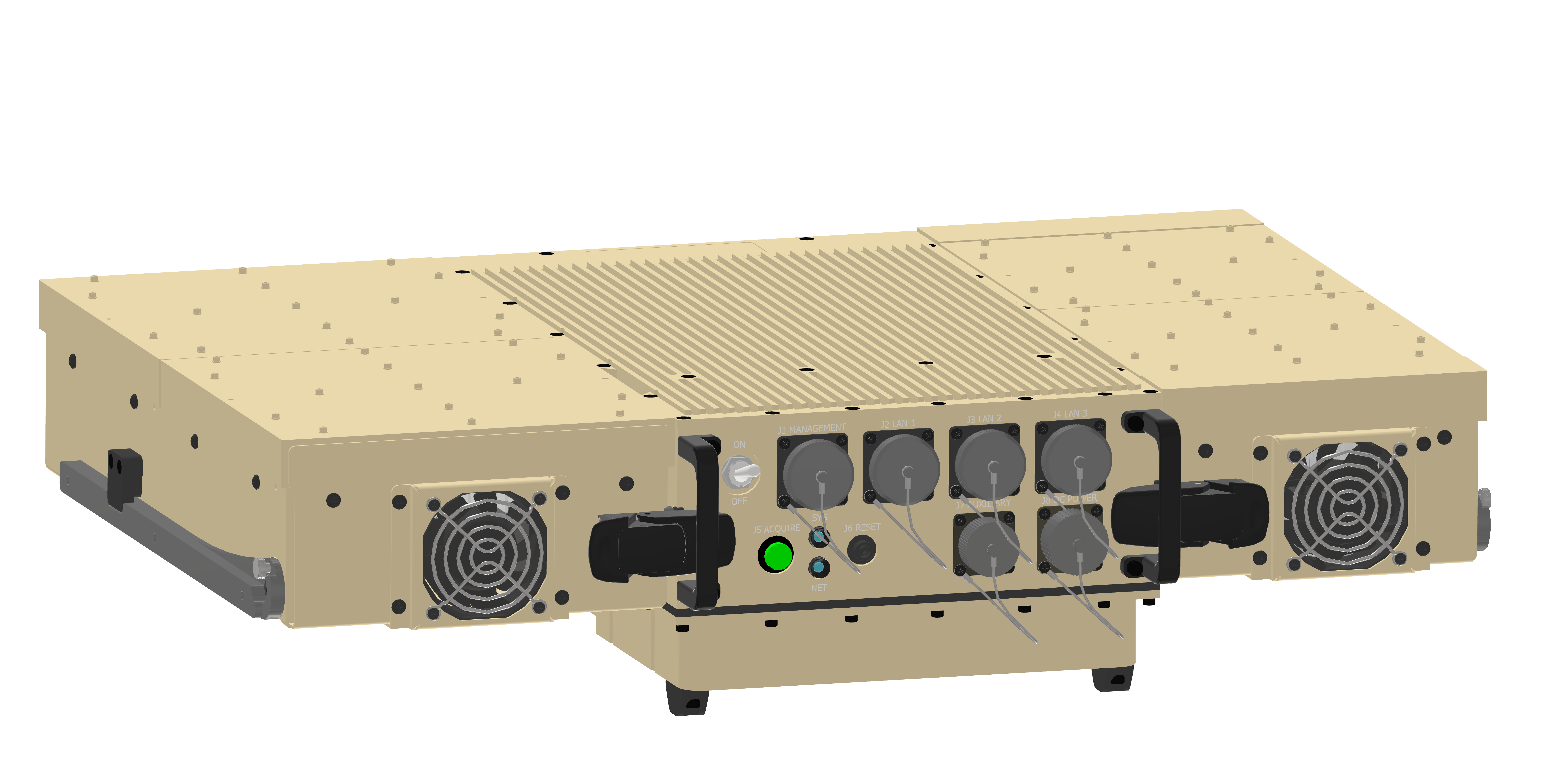

The Lite Sat-FP-W, or Lite Sat® Wedge, is a tactical flat panel Electronically Steerable Array (ESA) based satellite communications system. The first of its kind device is available with a variety of options tailored to meet the needs of today’s war-fighter. The systems operate over traditional Ku GEO satellites, OVZON 30B networks and Ku LEO. The data throughput of this system on the OVZON and LEO networks are a true game changer in the SATCOM Market.

The standard unit has 2 Transmit (Tx) and 2 Receive (Rx) arrays packaged in a modular assembly, attaching to the RF Equipment (RFE). It can also be paired with our Lite Sat-FP-W-X expansion kit which includes two additional Tx and two additional Rx arrays, and a power supply. We also have a single Tx or a single Rx device for unique applications.

Optional modems include the Lite Sat-TMA-950 which incorporates the iDirect 950 modem, the UHP-200 modem used on OVZON and the all new LEO constellation.

Our ESA panels have the best performance on the market today. The system is linear polarized with a circular polarization option.

Ideal For

  • Military World Wide Deployment
  • Executive Travel Teams
  • Border Security
  • Law Enforcement
  • Counterterrorism
  • SNG
  • EOD Teams
  • Special Operations Teams

Standard Features

  • Ku ESA Panels
  • Web Based LiteLink GUI
  • “One Button” Auto Acquisition
  • Airline Checkable Transit Case
  • 120 Second Set Up Time
  • Modem Agnostic
  • MIL STD 810H Packaging
  • Easy to Follow Operator Card

Optional Features Include

  • 2 Rx 2 Tx Expansion Pack
  • iDirect 950 Modem Package
  • OVZON UHP Modem Package
  • LEO Modem Package
  • Handheld Remote
  • Mil-Std-810 Certification
  • Custom Colors
  • Customer Defined Modems
  • Wi-Fi
  • Custom Packout

RF Performance

  Lite Sat-FP-W Lite Sat-FP-W-X
Transmit (GHz) 12.75-13.25/13.75-14.5 12.75-13.25/13.75-14.5
Receive (GHz) 10.7-11.7/10.7-12.75 10.7-11.7/10.7-12.75
EIRP (dBW) Nominal 40.5 46.5
G/T (dB/K) Nominal 6 9


Operational -30 to +55C (-22 to +131F)
Storage -40 to +60C (-40 to +140F)
Wind Load Greater than 48 kph, gusts to 72 kph (30 mph, gusts to 45 mph)

*Specifications are subject to change as Lite Coms® Engineers are continuously striving to improve performance of all of our products.
