The lightest, most durable auto acquire carbon fiber VSAT terminals in the world.

ABOUT LITE SAT 1.3

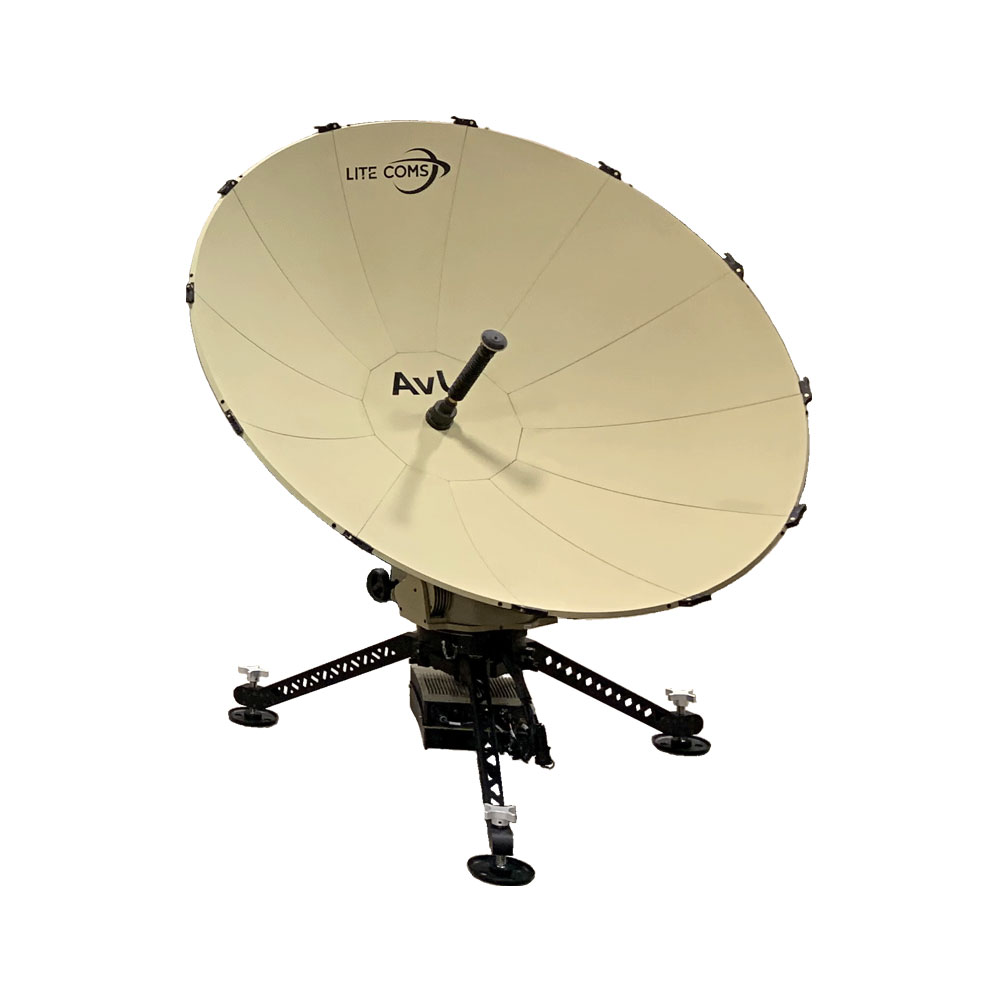

Designed for use in the most austere conditions, the Lite Sat 1.3M VSAT Terminal is the lightest weight Auto Acquire Carbon Fiber VSAT Terminal in the world.

Proudly made in the USA the Lite Sat 1.3M VSAT Terminal features an axi-symetric reflector, an integrated iDirect Modem, and top performing Mission Microwave SSPA’s to deliver the superior performance required for mission critical communications.

Our world-class Lite Coms engineers have designed and built over 8,000 VSAT terminals for the United States military and coalition partners, and the 1.3 VSAT Terminal is our most popular and top performing terminal to date.

Our customized transport packaging is smaller than most sub one-meter terminals, and the lightest weight (per case) of any Auto Acquire Terminal on the market.

Ideal For
  • Military World Wide Deployment
  • Executive Travel Teams
  • Border Security
  • Law Enforcement
  • Counterterrorism
  • SNG
  • EDD Teams
  • Special Operations Teams
Standard Features
  • Ku Band Kit (55 Watts Linear)
  • iDirect 950 Integrated ODU
  • Web Based GUI
  • 110-240V 50/60Hz
  • 3 Case packout, all < 55 lbs
Optional Features Include
  • Ka Band Kit
  • X Band Kit
  • CBM 400 Modem Option
  • Secure Base Band Kit
  • Global Airtime Solution On-Demand
  • Mil-Std-810 Certified
  • ARSTRAT Certified
  • Modem Agnostic
  • Appendix 30B
Mechanical
  # Weight Ext. Dimensions Contents
Cases 1 < 50 lbs 29.59” x 15.50” x 9.38” Petals/ODU
  2 < 50 lbs 29.59” x 15.50” x 9.38” Positioner
  3 < 50 lbs 29.59” x 15.50” x 9.38” RF/band kit
Reflector 12 Piece Carbon Fiber Axi-symmetric
Elevation +5 to 95 deg
  Azimuth: +/-95 deg
Cases

# Weight Ext. Dimensions Contents
1 < 50 lbs 29.59” x 15.50” x 9.38” Petals/ODU
2 < 50 lbs 29.59” x 15.50” x 9.38” Positioner
3 < 50 lbs 29.59” x 15.50” x 9.38” RF/band kit

Reflector

12 Piece Carbon Fiber Axi-symmetric

Elevation

+5 to 95 deg
Azimuth: +/-95 deg
RF Performance
  Ku Ka Ka- WB X Appx. 30B
Transmit (GHz) 13.75-14.5 30-31 29-31 7.9-8.4 12.75-13.25
Receive (GHz) 10.7-12.75 20.2-21.2 19.2-21.2 7.25-7.75 10.7-10.95
EIRP (dBW) Nom. Linear 60.1 67.4 67 56 59
G/T (dB/K) Nominal 19 21 20.5 15 19
Lower EIRP Available Upon Request

Transmit (GHz)

Ku Ka Ka- WB X Appx. 30B
13.75-14.5 30-31 29-31 7.9-8.4 12.75-13.25

Receive (GHz)

Ku Ka Ka- WB X Appx. 30B
10.7-12.75 20.2-21.2 19.2-21.2 7.25-7.75 10.7-10.95

EIRP (dBW) Nom. Linear

Ku Ka Ka- WB X Appx. 30B
60.1 67.4 67 56 59

G/T (dB/K) Nominal

Ku Ka Ka- WB X Appx. 30B
19 21 20.5 15 19

Lower EIRP Available Upon Request

Environmental
Temp. -32 to + 60C
Storage -46 to +71C
Wind Load 30 mph gusting to 45 mph with anchors

*Specifications are subject to change as Lite Coms LLC Engineers are continuously striving to improve performance of all of our products.
